Structural Blind Rivets
Structural Blind Rivets are high-strength fastening solutions designed for applications requiring superior shear and tensile performance.
This product belongs to our Blind Rivets range.
Available Materials, Head Types & Surface Finishes for Structural Blind Rivets
Available in standard diameters and grip ranges for high-strength and structural fastening applications.
| Parameter | Available Options |
| Diameter: | 4.8 mm (3/16″),6.4 mm (1/4″) |
| Length: | 10-22 mm(Available lengths vary by diameter) |
| Head Style: | Dome Head / Large Flange Head |
| Material: | Aluminum Alloy / Steel / Stainless Steel |
| Surface Finish: | Zinc Plating / Passivation |
| Grip Range: | Multiple options available according to rivet size and application |
Specifications & Size Options for Structural Blind Rivets
Structural Blind Rivets are available in robust material combinations to meet demanding performance requirements:

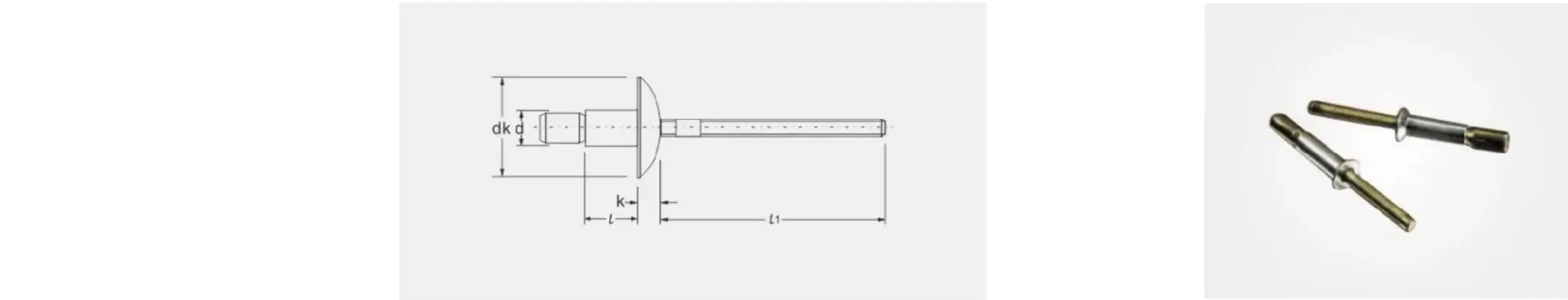

| d | l +0.99 | dk | Hole | Min.Grip | Max.Grip | K (k2) | L1 | Minimum Tensile Strength (N) | Minimum shear Strength (N) | ||
| Steel | Aluminum Alloy | Steel | Aluminum Alloy | ||||||||
| Φ4.8±0.09 | 10 | Φ9.5±0.29 | Φ5.0~Φ5.2 | 1.5 | 6.5 | 2.4 | 27 | 4800 | 2220 | 6000 | 2800 |
| Φ4.8±0.09 | 14 | Φ9.5±0.29 | Φ5.0~Φ5.2 | 1.5 | 11.0 | 2.4 | 27 | 4800 | 2220 | 6000 | 2800 |
| Φ6.4±0.11 | 14 | Φ13.0±0.35 | Φ6.7~Φ6.9 | 2.0 | 9.5 | 3.0 | 27 | 9120 | 3960 | 10500 | 5400 |
| Φ6.4±0.11 | 20 | Φ13.0±0.35 | Φ6.7~Φ6.9 | 2.0 | 16.0 | 3.0 | 27 | 9120 | 3960 | 10500 | 5400 |
Key Advantages of Structural Blind Rivets
Structural Blind Rivets are designed for demanding fastening applications where secure mandrel locking and reliable joint performance are important.
High Shear and Tensile Strength
Designed to provide high load-bearing capacity for demanding fastening applications.
Secure Mandrel Locking
Designed to retain the mandrel after setting to support joint integrity.
Resistance to Vibration
Suitable for applications where fastening joints are exposed to vibration, depending on product design and installation conditions.
Reliable Load Transfer
Designed to transfer loads between joined components when correctly selected and installed.
Suitable for Structural Applications
Used in applications requiring stronger, more secure blind-rivet connections.
One-Side Installation
Allows fastening where access to the rear side of the workpiece is limited.
Structural Blind Rivets vs Standard Blind Rivets
Structural Blind Rivets provide significantly higher performance compared with Standard Blind Rivets.
| Feature | Structural Blind Rivets | Standard Blind Rivets |
|---|---|---|
| Strength | High | Standard |
| Mandrel retention | Yes | No |
| Vibration resistance | High | Limited |
| Load-bearing use | Yes | No |
Typical Applications for Structural Blind Rivets
Structural Blind Rivets are widely used in heavy-duty and load-bearing applications, including:
Customization, Quality Control & Supply Capability
RivetFast offers drawing-based customization for Structural Blind Rivets, including dimensions, materials, head styles, and grip ranges to meet specific application requirements.
Customization Options
Dimensions, materials, finishes and packaging tailored to your specifications.
Quality Control
Dimensional checks, material verification and relevant product testing.
Manufacturing & Bulk Supply
In-house production and support for repeat and bulk orders.
Looking for standard or customized Structural Blind Rivets?
Send us your specifications for a quotation.
Installation Tools & Requirements for Structural Blind Rivets
Structural Blind Rivets require compatible installation tools suited to the specific rivet design and setting requirements. Proper tool selection and installation help ensure secure mandrel locking and reliable joint performance.
Need help selecting the right rivet size or grip range?
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Quality Management
RivetFast manufactures blind rivets under an ISO 9001 certified quality management system, supporting controlled production processes and consistent quality management.
In-House Inspection & Testing
Dimensional checks and relevant product tests help verify specified requirements. Our testing capabilities include tensile, hardness, and salt spray testing, depending on the product and inspection requirements.
A Broad Range of Blind Rivets
From open-end and multi-grip to closed-end, structural, and specialty blind rivets, our range covers different fastening designs, materials, and application needs.
Factory Manufacturing & Custom Support
With in-house manufacturing, 200+ automated machines, and an annual production capacity of 2 billion+ pieces, RivetFast supports bulk orders, repeat supply, and drawing-based customization.
Request a Quote for Structural Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
No complete specifications? No problem. Send us what you have and we’ll help confirm the requirements.
FAQ — Structural Blind Rivets
Q1:What are Structural Blind Rivets used for?
They are designed for high-strength, load-bearing assemblies. For general fastening, see Open-End Blind Rivets.
Q2:Which materials are used for Structural Blind Rivets?
Steel, stainless steel, and aluminum/steel combinations. For sealed applications, consider Closed-End Blind Rivets.
Q3:What tools are required for installing Structural Blind Rivets?
Pneumatic or hydraulic rivet tools are recommended due to higher installation force. For lighter applications, see Multi-Grip Blind Rivets.
Q4:What is the difference between Structural and Standard blind rivets?
Structural Blind Rivets have higher shear and tensile strength and retain the mandrel for vibration resistance.
Q5:Can Structural Blind Rivets be customized?
Yes, OEM and ODM customization is available for material, size, and head type.
Q6:Where are Structural Blind Rivets commonly applied?
Heavy-duty or load-bearing industries such as automotive, industrial machinery, rail, and metal structures.
