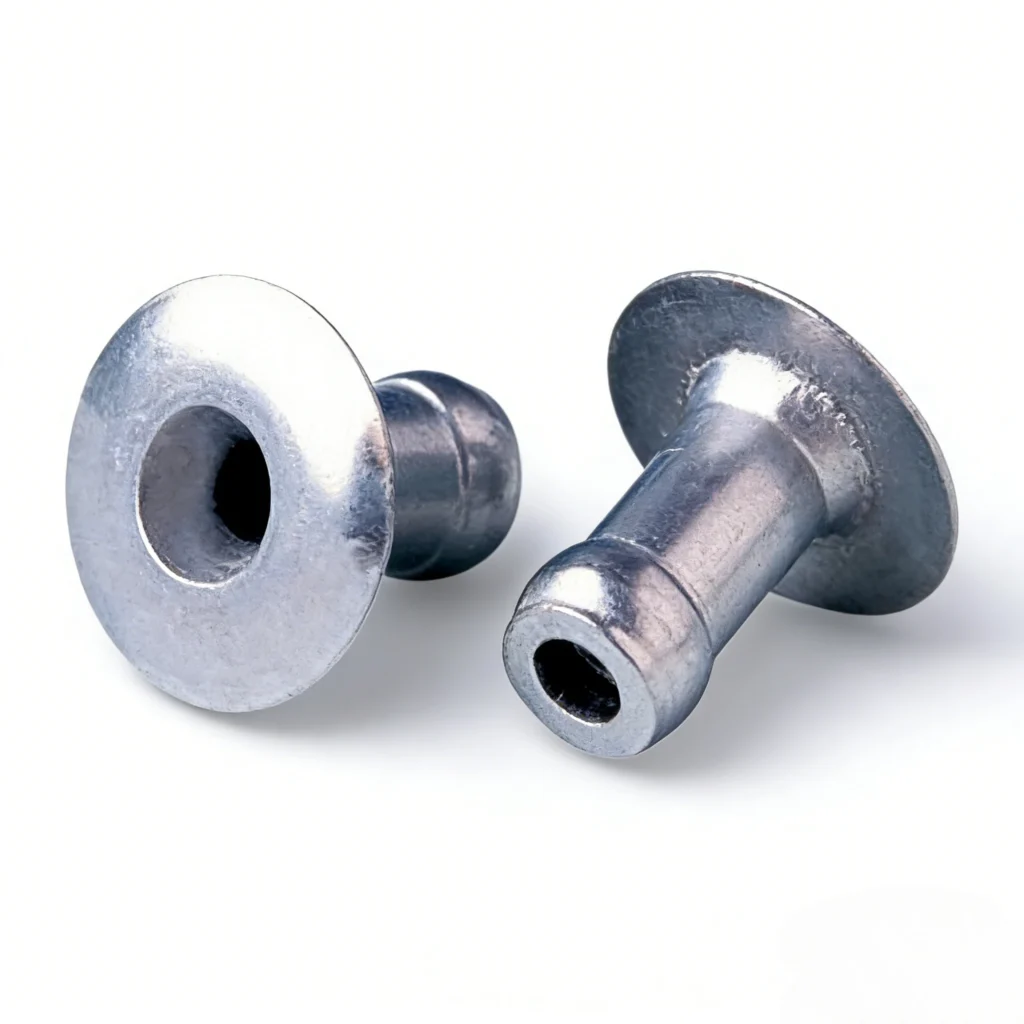

Speed Blind Rivets
Speed Blind Rivets are engineered to enable quick and efficient fastening without compromising strength. They are suitable for thin to medium gauge sheets and applications where rapid assembly is required.
This product belongs to our Blind Rivets range.
Available Materials, Head Types & Surface Finishes for Speed Blind Rivets
Speed Blind Rivets are available in multiple diameters, lengths, and grip ranges for fast, repetitive fastening applications.
| Parameter | Available Options |
| Diameter: | Multiple standard diameters |
| Length: | Multiple standard diameters |
| Head Style: | Dome Head / Large Flange Head |
| Material: | Aluminum Alloy / Steel / Stainless Steel |
| Surface Finish: | Zinc Plating / Anodizing / Natural/Plain Finish / Special Coatings |
| Grip Range: | Multiple options available according to rivet size and application |

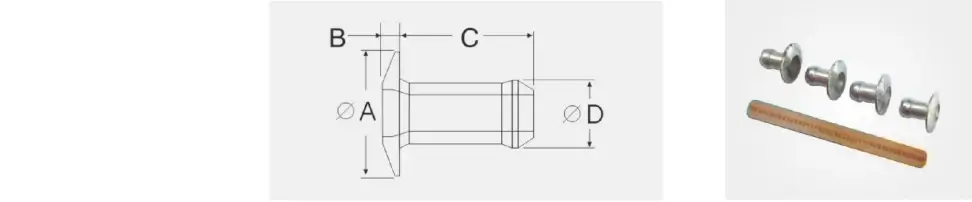

Specifications & Size Options for Speed Blind Rivets

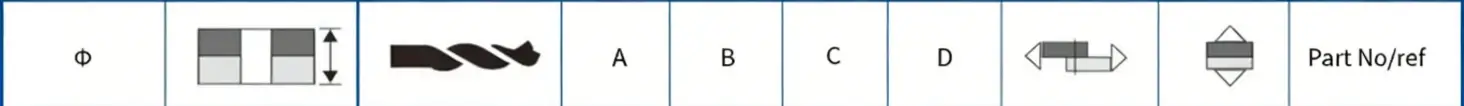

| NOM. | MIN. | MAX. | MIN. | MAX. | ±0.4 | MAX. | MAX. | MAX. | KN | KN | |
| 3.2(1/8″) | 0.64 | 1.91 | 3.26 | 3.34 | 6.2 | 0.99 | 3.86 | 3.14 | 0.7 | 1.3 | AL01-0403 |
| 3.2(1/8″) | 1.14 | 2.42 | 3.26 | 3.34 | 6.2 | 0.99 | 4.37 | 3.14 | 0.7 | 1.3 | AL01-0404 |
| 3.2(1/8″) | 1.65 | 2.87 | 3.26 | 3.34 | 6.2 | 0.99 | 4.87 | 3.14 | 0.7 | 1.3 | AL01-0405 |
| 3.2(1/8″) | 2.15 | 3.43 | 3.26 | 3.34 | 6.2 | 0.99 | 5.39 | 3.14 | 0.7 | 1.3 | AL01-0406 |
| 3.2(1/8″) | 3.17 | 4.45 | 3.26 | 3.34 | 6.2 | 0.99 | 6.41 | 3.14 | 0.7 | 1.3 | AL01-0408 |
| 3.2(1/8″) | 4.19 | 5.47 | 3.26 | 3.34 | 6.2 | 0.99 | 7.42 | 3.14 | 0.7 | 1.3 | AL01-0410 |
| 3.2(1/8″) | 5.20 | 6.48 | 3.26 | 3.34 | 6.2 | 0.99 | 8.44 | 3.14 | 0.7 | 1.3 | AL01-0412 |
| 3.2(1/8″) | 6.22 | 7.50 | 3.26 | 3.34 | 6.2 | 0.99 | 9.45 | 3.14 | 0.7 | 1.3 | AL01-0414 |
| 3.2(1/8″) | 7.24 | 8.51 | 3.26 | 3.34 | 6.2 | 0.99 | 10.46 | 3.14 | 0.7 | 1.3 | AL01-0416 |
| 4(5/32″) | 1.57 | 2.93 | 3.97 | 4.04 | 7.9 | 0.99 | 4.91 | 3.88 | 1.1 | 1.7 | AL01-0505 |
| 4(5/32″) | 2.15 | 3.43 | 3.97 | 4.04 | 7.9 | 0.99 | 5.41 | 3.88 | 1.1 | 1.7 | AL01-0506 |
| 4(5/32″) | 2.66 | 3.94 | 3.97 | 4.04 | 7.9 | 0.99 | 5.92 | 3.88 | 1.1 | 1.7 | AL01-0507 |
| 4(5/32″) | 3.68 | 4.96 | 3.97 | 4.04 | 7.9 | 0.99 | 6.94 | 3.88 | 1.1 | 1.7 | AL01-0509 |
| 4(5/32″) | 4.69 | 5.97 | 3.97 | 4.04 | 7.9 | 0.99 | 7.95 | 3.88 | 1.1 | 1.7 | AL01-0511 |
| 4(5/32″) | 5.71 | 6.99 | 3.97 | 4.04 | 7.9 | 0.99 | 8.97 | 3.88 | 1.1 | 1.7 | AL01-0513 |
| 4(5/32″) | 6.73 | 8.00 | 3.97 | 4.04 | 7.9 | 0.99 | 9.98 | 3.88 | 1.1 | 1.7 | AL01-0515 |
| 4(5/32″) | 7.75 | 9.02 | 3.97 | 4.04 | 7.9 | 0.99 | 11.00 | 3.88 | 1.1 | 1.7 | AL01-0517 |
Key Advantages of Speed Blind Rivets
Speed Blind Rivets are designed for efficient fastening applications where installation speed and production throughput are important.
Fast Installation
Designed to support efficient riveting and streamline assembly operations.
Reliable Joint Formation
Proper rivet selection and installation help achieve secure and consistent joints.
Suitable for High-Volume Production
Useful for production environments requiring repeated fastening operations.
Reduced Assembly Time
Efficient installation can help shorten fastening cycle times in suitable applications.
Lower Installation Labor Requirements
Streamlined riveting operations may reduce labor input per fastening point, depending on the assembly process.
Compatible Tooling Options
Can be used with compatible blind rivet tools according to the specific rivet design and setting requirements.
Speed Blind Rivets vs Standard Blind Rivets
Speed Blind Rivets are the ideal solution for high-volume production environments.
| Feature | Speed Blind Rivets | Standard Open-End Blind Rivets |
|---|---|---|
| Installation Speed | Very fast – designed for rapid, repetitive installation | Standard installation speed |
| Installation Method | Often installed in sequences (stick-fed / magazine systems) | Installed one by one |
| Production Efficiency | High – ideal for mass production and assembly lines | Moderate – suitable for general use |
| Strength Level (Shear & Tensile) | Moderate | Standard |
Typical Applications for Speed Blind Rivets
For specialized load-bearing applications, Hemlock or Pull-Thru Blind Rivets may be considered.
Customization, Quality Control & Supply Capability
RivetFast offers drawing-based customization for Speed Blind Rivets, including dimensions, materials, head styles, and packaging.
Customization Options
Custom dimensions, materials, head styles, and packaging based on your specifications.
Quality Control
Dimensional inspection and product checks to verify specified dimensions and product consistency.
Manufacturing & Bulk Supply
In-house manufacturing to support bulk orders and reliable repeat supply.
Looking for standard or customized Speed Blind Rivets?
Send us your specifications for a quotation.
Installation Tools & Setting Process for Speed Blind Rivets
Speed Blind Rivets can be installed using compatible manual, pneumatic, or electric rivet tools, depending on the rivet design and setting requirements.
Insert the rivet into the correctly sized, pre-drilled hole.
Engage the mandrel with a compatible riveting tool.
Operate the tool according to the specified setting requirements to form the joint.
Inspect the installed rivet for proper formation and secure fastening.
Need help selecting the right rivet size or grip range?
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Quality Management
RivetFast manufactures blind rivets under an ISO 9001 certified quality management system, supporting controlled production processes and consistent quality management.
In-House Inspection & Testing
Dimensional checks and relevant product tests help verify specified requirements. Our testing capabilities include tensile, hardness, and salt spray testing, depending on the product and inspection requirements.
A Broad Range of Blind Rivets
From open-end and multi-grip to closed-end, structural, and specialty blind rivets, our range covers different fastening designs, materials, and application needs.
Factory Manufacturing & Custom Support
With in-house manufacturing, 200+ automated machines, and an annual production capacity of 2 billion+ pieces, RivetFast supports bulk orders, repeat supply, and drawing-based customization.
Request a Quote for Speed Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
No complete specifications? No problem. Send us what you have and we’ll help confirm the requirements.
FAQ – Speed Blind Rivets
Q1: What makes Speed Blind Rivets different from standard blind rivets?
Speed Blind Rivets are designed for faster installation while maintaining secure fastening.
Q2:What materials are available for Speed Blind Rivets?
Aluminum, steel, and stainless steel with optional surface finishes.
Q3:Can Speed Blind Rivets be used in high-volume production?
Yes, they are specifically engineered for rapid installation in assembly lines.
Q4:What installation tools are recommended?
Manual, pneumatic, or electric blind rivet tools compatible with rivet size and grip.
Q5:Are custom sizes or finishes available?
Yes. OEM customization is available for grip length, diameter, and coatings.
This product is part of RivetFast’s Blind Rivets product range and is manufactured to meet industrial fastening requirements.
