Multi-Grip Blind Rivets
Multi-Grip Blind Rivets are blind rivets engineered with an extended grip range, allowing one rivet size to fasten multiple material thicknesses.
This product belongs to our Blind Rivets range.
Available Materials, Head Types & Surface Finishes for Multi-Grip Blind Rivets
Available in standard diameters and extended grip ranges for fastening materials with varying thicknesses.
| Parameter | Available Options |
| Diameter: | 3.2 mm (1/8″), 4.0 mm (5/32″), 4.8 mm (3/16″), 6.4 mm (1/4″) |
| Length: | 8-20 mm(Available lengths vary by diameter) |
| Head Style: | Dome Head / Large Flange Head |
| Material: | Aluminum Alloy / Steel / Stainless Steel |
| Surface Finish: | Zinc Plating / Anodizing / Passivation |
| Grip Range: | Extended / wide grip range |

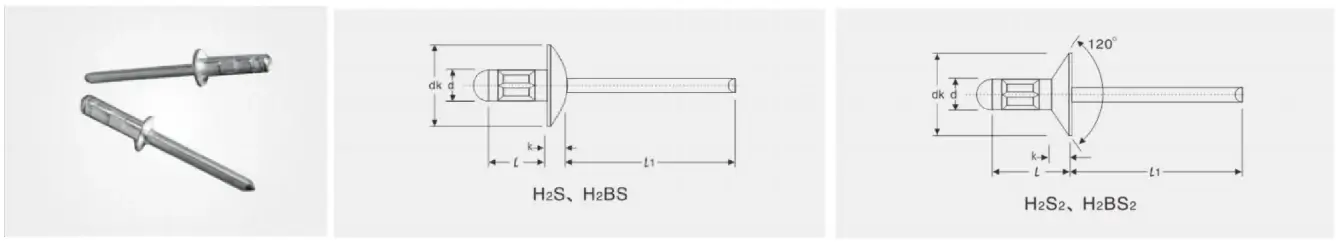

Specifications & Size Options for Multi-Grip Blind Rivets
Multi-Grip Blind Rivets are available in a variety of material combinations to suit different strength and corrosion resistance requirements, including:
| d | l +0.99 | dk | Hole | Min.Grip | Max.Grip | K (k2) | L1 | Minimum Tensile Strength (N) | |
| Φ3.2(+0.09/-0.15) | 8 | Φ6.0±0.24 | Φ3.4 | 0.5 | 5.0 | 1.4（1.2） | 26 | 670 | 530 |
| Φ3.2(+0.09/-0.15) | 10 | Φ6.0±0.24 | Φ3.4 | 2.5 | 7.0 | 1.4（1.2） | 26 | 670 | 530 |
| Φ3.2(+0.09/-0.15) | 12 | Φ6.0±0.24 | Φ3.4 | 4.5 | 9.0 | 1.4（1.2） | 26 | 670 | 530 |
| Φ3.2(+0.09/-0.15) | 14 | Φ6.0±0.24 | Φ3.4 | 6.5 | 11.0 | 1.4（1.2） | 26 | 670 | 530 |
| Φ3.2(+0.09/-0.15) | 16 | Φ6.0±0.24 | Φ3.4 | 8.5 | 13.0 | 1.4（1.2） | 26 | 670 | 530 |
| Φ4.0(+0.09/-0.15) | 10 | Φ8.0±0.29 | Φ4.2 | 1.0 | 6.5 | 1.7（1.4） | 27 | 1020 | 845 |
| Φ4.0(+0.09/-0.15) | 12 | Φ8.0±0.29 | Φ4.2 | 3.0 | 8.5 | 1.7（1.4） | 27 | 1020 | 845 |
| Φ4.0(+0.09/-0.15) | 14 | Φ8.0±0.29 | Φ4.2 | 5.0 | 10.5 | 1.7（1.4） | 27 | 1020 | 845 |
| Φ4.0(+0.09/-0.15) | 16 | Φ8.0±0.29 | Φ4.2 | 7.0 | 12.5 | 1.7（1.4） | 27 | 1020 | 845 |
| Φ4.0(+0.09/-0.15) | 18 | Φ8.0±0.29 | Φ4.2 | 9.0 | 14.5 | 1.7（1.4） | 27 | 1020 | 845 |
| Φ4.8(+0.09/-0.15) | 10 | Φ8.0±0.29 | Φ4.1 | 0.5 | 5.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 12 | Φ8.0±0.29 | Φ4.1 | 2.0 | 7.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 14 | Φ8.0±0.29 | Φ4.1 | 4.0 | 9.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 16 | Φ8.0±0.29 | Φ4.1 | 6.0 | 11.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 18 | Φ8.0±0.29 | Φ4.1 | 8.0 | 13.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 20 | Φ8.0±0.29 | Φ4.1 | 10.0 | 15.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 22 | Φ8.0±0.29 | Φ4.1 | 12.0 | 17.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 24 | Φ8.0±0.29 | Φ4.1 | 14.0 | 19.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ4.8(+0.09/-0.15) | 26 | Φ8.0±0.29 | Φ4.1 | 16.0 | 21.0 | 2（1.6） | 27 | 1425 | 1160 |
| Φ6.4(+0.11/-0.15) | 12 | Φ13.0±0.35 | Φ6.7 | 2.0 | 6.0 | 2.7（2.2） | 31 | 7500 | 13000 |
| Φ6.4(+0.11/-0.15) | 16 | Φ13.0±0.35 | — | 6.0 | 10.0 | 2.7（2.2） | 31 | 7500 | 13000 |
| Φ6.4(+0.11/-0.15) | 20 | Φ13.0±0.35 | Φ6.9 | 10.0 | 15.0 | 2.7（2.2） | 31 | 7500 | 13000 |
Key Advantages of Multi-Grip Blind Rivets
Multi-Grip Blind Rivets accommodate a wider range of material thicknesses, helping simplify rivet selection and reduce the number of sizes required for assembly.
Wide Grip Range
Accommodates varying material thicknesses within the specified grip range.
Fewer Rivet Sizes Required
May reduce SKU variety and simplify inventory management.
Simplified Rivet Selection
Helps reduce the need to select different rivet lengths for varying joint thicknesses.
Flexible Assembly
Suitable for joints with varying material thicknesses within the rated grip range.
Reliable Joint Formation
Forms a secure joint when correctly selected and installed.
Potential Cost Savings
May reduce inventory complexity and procurement costs in suitable applications.
Multi-Grip Blind Rivets vs Standard Blind Rivets
Compared with Standard Blind Rivets, Multi-Grip Blind Rivets offer greater flexibility in fastening materials of varying thicknesses.
| Feature | Multi-Grip Blind Rivets | Standard Blind Rivets |
|---|---|---|
| Grip range | Wide | Limited |
| Inventory required | Reduced | Multiple sizes |
| Installation tolerance | High | Low |
| Ideal for repair work | Yes | Limited |
Typical Applications for Multi-Grip Blind Rivets
Multi-grip blind rivets are widely used in applications where material thickness may vary or is difficult to control, including:
For thin materials requiring enhanced load distribution, Large Flange Open-End Blind Rivets or Pull-Thru Blind Rivets may also be suitable alternatives.
Customization, Quality Control & Supply Capability
RivetFast offers drawing-based customization for Multi-Grip Blind Rivets, including dimensions, materials, head styles, surface finishes, and packaging.
Customization
Custom dimensions, materials, head styles, finishes, and packaging based on your specifications.
Quality Control
Dimensional inspection and product checks to help maintain specification consistency.
Supply Capability
In-house manufacturing to support bulk orders and repeat supply.
Need Multi-Grip Blind Rivets for your application?
Send us your drawing or specifications.
Installation Tools & Requirements for Multi-Grip Blind Rivets
Multi-Grip Blind Rivets can be installed using compatible manual, pneumatic, or battery-powered rivet tools. Select the correct rivet grip range and ensure tool compatibility for proper installation.
Need help selecting the right rivet size or grip range?
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Quality Management
RivetFast manufactures blind rivets under an ISO 9001 certified quality management system, supporting controlled production processes and consistent quality management.

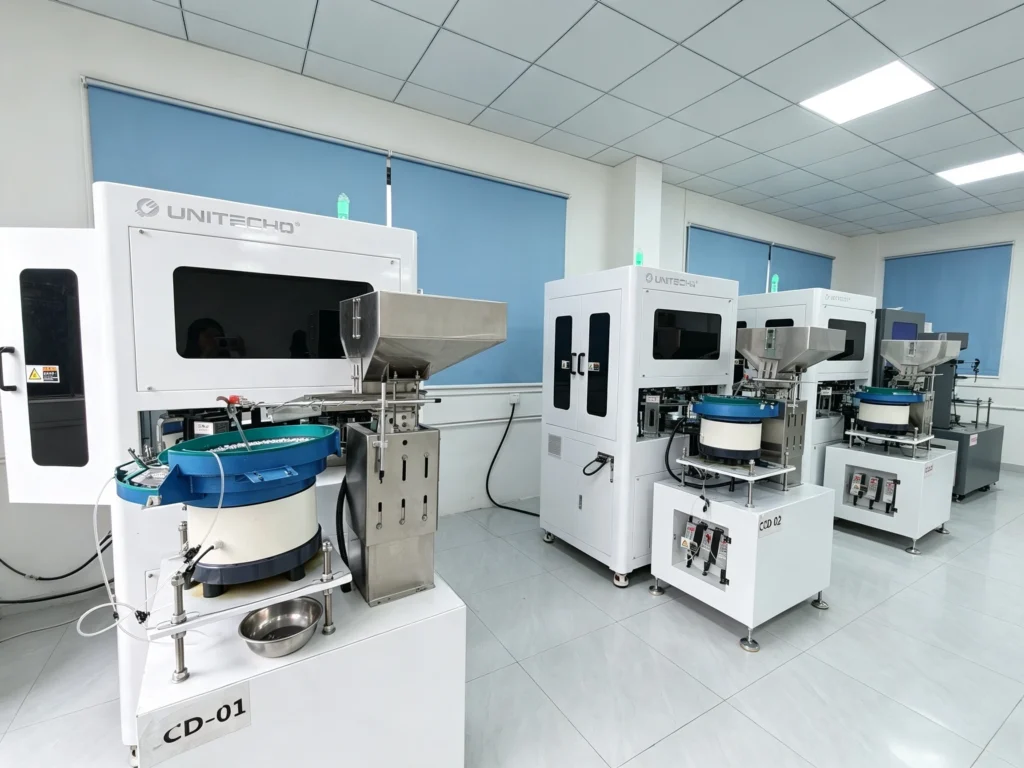

In-House Inspection & Testing
Dimensional checks and relevant product tests help verify specified requirements. Our testing capabilities include tensile, hardness, and salt spray testing, depending on the product and inspection requirements.
A Broad Range of Blind Rivets
From open-end and multi-grip to closed-end, structural, and specialty blind rivets, our range covers different fastening designs, materials, and application needs.
Factory Manufacturing & Custom Support
With in-house manufacturing, 200+ automated machines, and an annual production capacity of 2 billion+ pieces, RivetFast supports bulk orders, repeat supply, and drawing-based customization.
Request a Quote for Multi-Grip Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
No complete specifications? No problem. Send us what you have and we’ll help confirm the requirements.
FAQ — Multi-Grip Blind Rivets
Q1:What makes Multi-Grip Blind Rivets different from standard rivets?
Multi-Grip rivets cover a wide grip range, meaning one size can replace multiple standard rivets. For simpler, fixed-thickness applications, see Open-End Blind Rivets.
Q2:Which materials are available for Multi-Grip Blind Rivets?
Aluminum, steel, and stainless steel combinations are available. For high sealing needs, see Closed-End Blind Rivets.
Q3:What tools are compatible with Multi-Grip Blind Rivets?
Standard manual, pneumatic, and electric rivet tools work well. For structural or heavy-duty assemblies, consider Structural Blind Rivets.
Q4:Can Multi-Grip Blind Rivets replace multiple standard rivet sizes?
Yes, this is their main advantage. Refer to Grip Range Chart.
Q5:Are Multi-Grip Blind Rivets suitable for maintenance or repair work?
Absolutely, especially when material thickness varies. For simpler general-purpose use, see Open-End Blind Rivets.
Q6:Can you provide customized Multi-Grip Blind Rivets?
Yes, OEM/ODM services are available for specific sizes, materials, and head types.
