Open-End Blind Rivets
Open-End Blind Rivets, commonly referred to as Pop Rivets, are one of the most widely used blind fastening solutions. They are designed for applications where access is available from only one side of the workpiece.
This product belongs to our Blind Rivets range.
Available Materials, Head Types & Surface Finishes for Open-End Blind Rivets
Available in standard diameters from 2.4 to 6.4 mm, with multiple lengths and grip ranges.
| Parameter | Available Options |
| Diameter: | 2.4 mm (3/32″), 3.0 mm, 3.2 mm (1/8″), 4.0 mm (5/32″), 4.8 mm (3/16″), 6.0 mm, 6.4 mm (1/4″) |
| Length: | 5-35 mm(Available lengths vary by diameter) |
| Head Style: | Dome Head / Large Flange Head |
| Material: | Aluminum Alloy / Steel / Stainless Steel / Copper |
| Surface Finish: | Zinc Plating / Anodizing / Passivation |
| Grip Range: | Multiple options available according to rivet size and application |
Specifications & Size Options for Open-End Blind Rivets
Open-End Blind Rivets are available in various material combinations to meet different strength and corrosion resistance requirements:

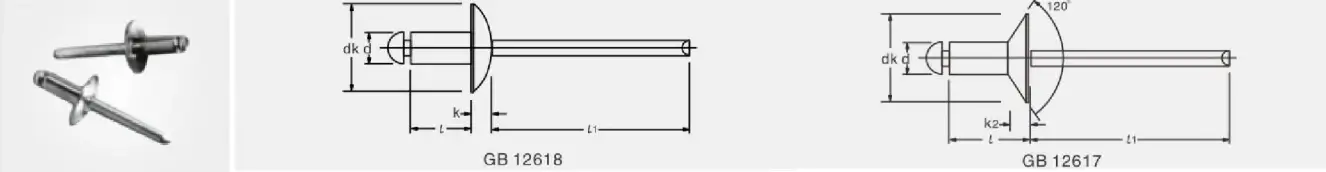

| d | l +0.99 | dk | Hole | Min.Grip | Max.Grip | K (k2) | L1 | Minimum Tensile Strength (N) | Minimum shear Strength (N) | ||||||
| 8 | 10 | 12 | 11 | 8 | 10 | 12 | 11 | ||||||||
| Φ2.4±0.07 | 5 | Φ4.8±0.24 | Φ2.5 | 0.5 | 2.5 | 1（0.9） | 26 | 258 | 353 | — | — | 172 | 314 | — | — |
| Φ2.4±0.07 | 7 | Φ4.8±0.24 | Φ2.5 | 2.5 | 4.5 | 1（0.9） | 26 | 258 | 353 | — | — | 172 | 314 | — | — |
| Φ2.4±0.07 | 9 | Φ4.8±0.24 | Φ2.5 | 4.5 | 6.5 | 1（0.9） | 26 | 258 | 353 | — | — | 172 | 314 | — | — |
| Φ3.0±0.07 | 5 | Φ6.0±0.24 | Φ3.1 | 0.5 | 2.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.0±0.07 | 7 | Φ6.0±0.24 | Φ3.1 | 2.0 | 4.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.0±0.07 | 9 | Φ6.0±0.24 | Φ3.1 | 4.0 | 6.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.0±0.07 | 11 | Φ6.0±0.24 | Φ3.1 | 6.0 | 8.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.0±0.07 | 13 | Φ6.0±0.24 | Φ3.1 | 8.0 | 10.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.0±0.07 | 15 | Φ6.0±0.24 | Φ3.1 | 10.0 | 12.0 | 1.4（1.2） | 26 | 380 | 595 | — | 870 | 300 | 475 | — | 680 |
| Φ3.2±0.09 | 5 | Φ6.0±0.24 | Φ3.3 | 0.5 | 2.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 7 | Φ6.0±0.24 | Φ3.3 | 2.0 | 4.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 9 | Φ6.0±0.24 | Φ3.3 | 4.0 | 6.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 11 | Φ6.0±0.24 | Φ3.3 | 6.0 | 8.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 13 | Φ6.0±0.24 | Φ3.3 | 8.0 | 10.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 15 | Φ6.0±0.24 | Φ3.3 | 10.0 | 12.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ3.2±0.09 | 17 | Φ6.0±0.24 | Φ3.3 | 12.0 | 14.0 | 1.4（1.2） | 26 | 450 | 670 | 670 | 980 | 360 | 530 | 530 | 760 |
| Φ4.0±0.09 | 6 | Φ8.0±0.29 | Φ4.1 | 2.5 | 4.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 8 | Φ8.0±0.29 | Φ4.1 | 4.5 | 6.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 10 | Φ8.0±0.29 | Φ4.1 | 6.5 | 8.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 12 | Φ8.0±0.29 | Φ4.1 | 8.5 | 10.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 13 | Φ8.0±0.29 | Φ4.1 | 10.5 | 12.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 16 | Φ8.0±0.29 | Φ4.1 | 12.5 | 14.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 18 | Φ8.0±0.29 | Φ4.1 | 14.5 | 16.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 20 | Φ8.0±0.29 | Φ4.1 | 16.5 | 18.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.0±0.09 | 22 | Φ8.0±0.29 | Φ4.1 | 18.5 | 20.5 | 1.7（1.4） | 27 | 750 | 1020 | 1020 | 1600 | 540 | 850 | 850 | 1200 |
| Φ4.8±0.09 | 7 | Φ9.5±0.29 | Φ4.9 | 1.0 | 3.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 9 | Φ9.5±0.29 | Φ4.9 | 3.0 | 5.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 11 | Φ9.5±0.29 | Φ4.9 | 5.0 | 7.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 13 | Φ9.5±0.29 | Φ4.9 | 7.0 | 9.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 15 | Φ9.5±0.29 | Φ4.9 | 9.0 | 11.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 18 | Φ9.5±0.29 | Φ4.9 | 11.0 | 14.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 20 | Φ9.5±0.29 | Φ4.9 | 14.0 | 16.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 22 | Φ9.5±0.29 | Φ4.9 | 16.0 | 18.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 24 | Φ9.5±0.29 | Φ4.9 | 18.0 | 20.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 26 | Φ9.5±0.29 | Φ4.9 | 20.0 | 22.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 28 | Φ9.5±0.29 | Φ4.9 | 22.0 | 24.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ4.8±0.09 | 30 | Φ9.5±0.29 | Φ4.9 | 24.0 | 26.0 | 2（1.6） | 27 | 1050 | 1425 | 1425 | 2230 | 935 | 1160 | 1160 | 1690 |
| Φ5.0±0.09 | 7 | Φ9.5±0.29 | Φ5.1 | 1.0 | 3.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 9 | Φ9.5±0.29 | Φ5.1 | 3.0 | 5.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 11 | Φ9.5±0.29 | Φ5.1 | 5.0 | 7.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 13 | Φ9.5±0.29 | Φ5.1 | 7.0 | 9.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 15 | Φ9.5±0.29 | Φ5.1 | 9.0 | 11.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 18 | Φ9.5±0.29 | Φ5.1 | 11.0 | 14.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 20 | Φ9.5±0.29 | Φ5.1 | 14.0 | 16.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 22 | Φ9.5±0.29 | Φ5.1 | 16.0 | 18.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 24 | Φ9.5±0.29 | Φ5.1 | 18.0 | 20.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 26 | Φ9.5±0.29 | Φ5.1 | 20.0 | 22.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 28 | Φ9.5±0.29 | Φ5.1 | 22.0 | 24.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ5.0±0.09 | 30 | Φ9.5±0.29 | Φ5.1 | 24.0 | 26.0 | 2（1.6） | 27 | 1150 | 1525 | 1525 | 2500 | 990 | 1280 | 1280 | 2000 |
| Φ6.4±0.11 | 10 | Φ12.7±0.35 | Φ6.5 | 1.0 | 4.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 13 | Φ12.7±0.35 | Φ6.5 | 3.0 | 7.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 15 | Φ12.7±0.35 | Φ6.5 | 5.0 | 9.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 18 | Φ12.7±0.35 | Φ6.5 | 8.0 | 12.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 20 | Φ12.7±0.35 | Φ6.5 | 10.0 | 14.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 22 | Φ12.7±0.35 | Φ6.5 | 12.0 | 16.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 24 | Φ12.7±0.35 | Φ6.5 | 14.0 | 18.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 26 | Φ12.7±0.35 | Φ6.5 | 16.0 | 20.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 28 | Φ12.7±0.35 | Φ6.5 | 18.0 | 22.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 30 | Φ12.7±0.35 | Φ6.5 | 20.0 | 24.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
| Φ6.4±0.11 | 35 | Φ12.7±0.35 | Φ6.5 | 25.0 | 29.0 | 2.7（2.2） | 31 | 2050 | 2495 | 2495 | 4090 | 1460 | 2050 | 2050 | 3120 |
Key Advantages of Open-End Blind Rivets
Open-End Blind Rivets offer a versatile and economical fastening solution for general assembly and sheet material applications.
One-Side Installation
Installed from one side of the workpiece, making them suitable for joints with limited rear access.
Cost-Effective Fastening
An economical choice for general-purpose fastening and high-volume production.
Wide Range of Sizes
Available in various diameters, lengths, and grip ranges to suit different joint requirements.
Multiple Material Options
Available in aluminum, steel, stainless steel, and other material combinations to meet different application needs.
Suitable for Sheet Materials
Commonly used to join sheet metal and other compatible materials in lightweight assemblies.
Standard Tool Compatibility
Compatible with suitable standard blind rivet tools, supporting efficient assembly.
Open-End vs Closed-End Blind Rivets
While Open-End Blind Rivets are suitable for general fastening, Closed-End Blind Rivets are designed for applications requiring sealing or improved corrosion resistance.
| Feature | Open-End Blind Rivets | Closed-End Blind Rivets |
|---|---|---|
| End structure | Open | Sealed |
| Waterproof performance | No | Yes |
| Cost | Lower | Higher |
| Typical use | General fastening | Sealed applications |
Typical Applications for Open-End Blind Rivets
Open-End Blind Rivets are widely used in general industrial and commercial applications, including:
Their versatility makes them one of the most commonly used blind rivets worldwide.
Customization, Quality Control & Supply Capability
RivetFast supports drawing-based customization, product quality inspection, and bulk supply of open-end blind rivets to meet different application and procurement requirements.
Customization Options
Dimensions, materials, finishes and packaging tailored to your specifications.
Quality Control
Dimensional checks, material verification and relevant product testing.
Manufacturing & Bulk Supply
In-house production and support for repeat and bulk orders.
Looking for standard or customized open-end blind rivets?
Send us your specifications for a quotation.
Installation Tools & Requirements for Open-End Blind Rivets
Open-end blind rivets are compatible with manual, pneumatic, or electric rivet tools.
For consistent installation, select a rivet with the correct diameter and grip range, and ensure the hole size and tool specifications are compatible with the rivet.
Need help selecting the right rivet size or grip range?
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Quality Management
RivetFast manufactures blind rivets under an ISO 9001 certified quality management system, supporting controlled production processes and consistent quality management.
In-House Inspection & Testing
Dimensional checks and relevant product tests help verify specified requirements. Our testing capabilities include tensile, hardness, and salt spray testing, depending on the product and inspection requirements.
A Broad Range of Blind Rivets
From open-end and multi-grip to closed-end, structural, and specialty blind rivets, our range covers different fastening designs, materials, and application needs.
Factory Manufacturing & Custom Support
With in-house manufacturing, 200+ automated machines, and an annual production capacity of 2 billion+ pieces, RivetFast supports bulk orders, repeat supply, and drawing-based customization.
Request a Quote for Open-End Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
No complete specifications? No problem. Send us what you have and we’ll help confirm the requirements.
FAQ— Open-End Blind Rivets
Q1:What are Open-End Blind Rivets typically used for?
Open-End Blind Rivets are widely used for general fastening tasks, such as joining sheet metal, panels, and lightweight structural assemblies. For heavier-duty or load-bearing applications, you might consider Structural Blind Rivets.
Q2:Which materials can I choose for Open-End Blind Rivets?
Q3:What tools are required to install Open-End Blind Rivets?
Q4:Can Open-End Blind Rivets be used outdoors?
They can be used outdoors for general fastening. However, for water- or weather-exposed applications, Closed-End Blind Rivets offer superior protection.
Q5:How to choose the correct size for Open-End Blind Rivets?
Q6:Do you provide customization for Open-End Blind Rivets?
Yes, OEM and ODM customization options are available. For reduced inventory solutions, Multi-Grip Blind Rivets may also be suitable.
This product is part of RivetFast’s Blind Rivets product range and is manufactured to meet industrial fastening requirements.
