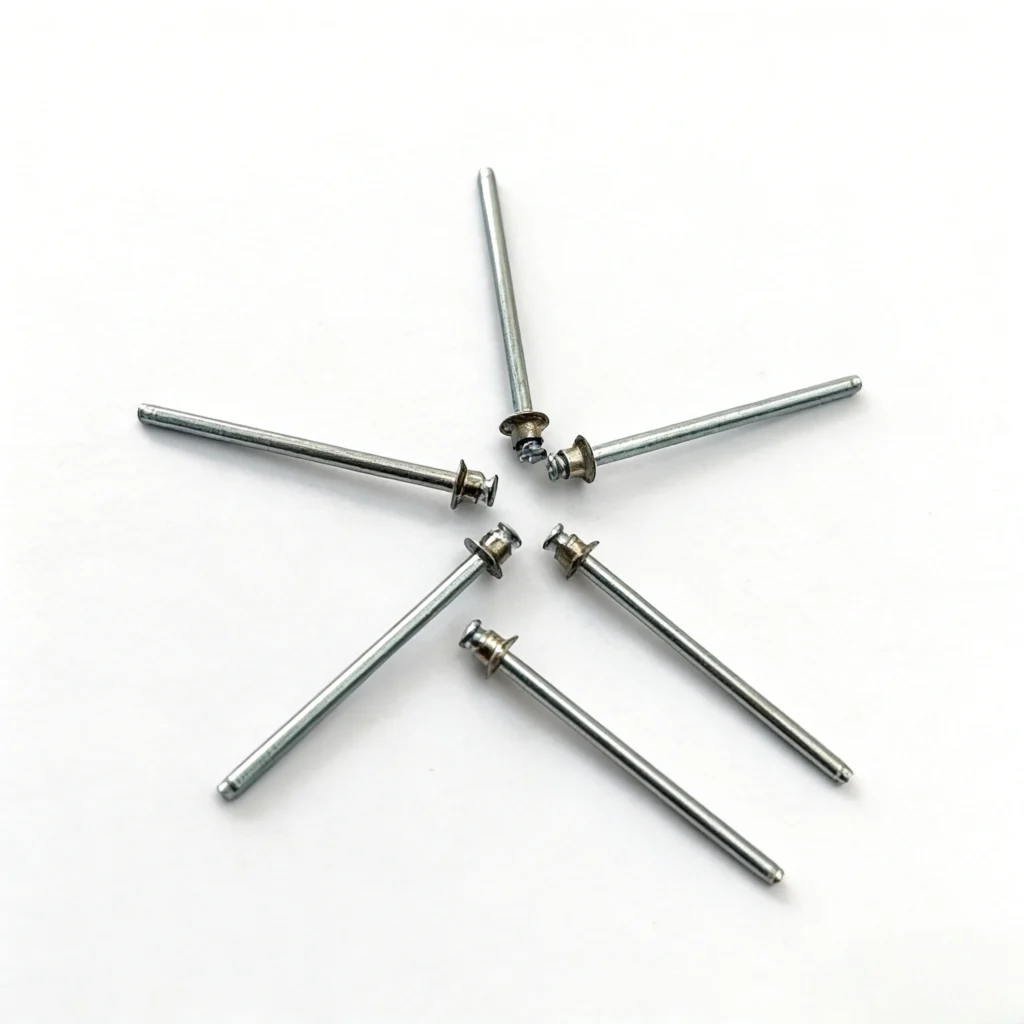

Flying Head Blind Rivets
Flying Head Blind Rivets are designed for applications requiring strong, secure fastening where the backside is inaccessible.
This product belongs to our Blind Rivets range.
Available Materials, Head Types & Surface Finishes for Flying Head Blind Rivets
| Parameter | Available Options |
| Diameter: | 3.0 mm, 3.2 mm (1/8″) |
| Length: | 2.1-6.3 mm(Available lengths vary by diameter) |
| Head Style: | Flying Dome Head / Large Flange Flying Head |
| Material: | Aluminum Alloy / Steel / Stainless Steel |
| Surface Finish: | Zinc Plating / Anodizing / Special Coatings |
| Grip Range: | Multiple options available according to rivet size and application |

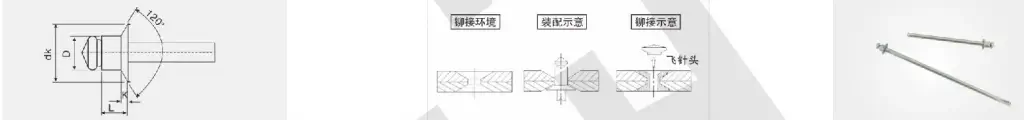

Specifications & Sizes Options for Flying Head Blind Rivets
| d | l +0.99 | dk | Hole | Grip Range | K | Minimum Tensile Strength (N) | Minimum shear Strength (N) | |
| 3.0 | 2.1 | 4.9-5.5 | 3.1 | 1.2-1.5 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 2.4 | 4.9-5.5 | 3.1 | 1.5-2.0 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 2.8 | 4.9-5.5 | 3.1 | 2.0-2.5 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 3.3 | 4.9-5.5 | 3.1 | 2.5-3.0 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 3.8 | 4.9-5.5 | 3.1 | 3.0-3.5 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 4.3 | 4.9-5.5 | 3.1 | 3.5-4.0 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 4.8 | 4.9-5.5 | 3.1 | 4.0-4.5 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 5.3 | 4.9-5.5 | 3.1 | 4.5-5.0 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 5.8 | 4.9-5.5 | 3.1 | 5.0-5.5 | 0.75-1.0 | 800 | 700 | |
| 3.0 | 6.3 | 4.9-5.5 | 3.1 | 5.5-6.0 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 2.1 | 4.9-5.5 | 3.3 | 1.2-1.5 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 2.3 | 4.9-5.5 | 3.3 | 1.5-2.0 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 2.8 | 4.9-5.5 | 3.3 | 2.0-2.5 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 3.3 | 4.9-5.5 | 3.3 | 2.5-3.0 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 3.8 | 4.9-5.5 | 3.3 | 3.0-3.5 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 4.3 | 4.9-5.5 | 3.3 | 3.5-4.0 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 4.8 | 4.9-5.5 | 3.3 | 4.0-4.5 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 5.3 | 4.9-5.5 | 3.3 | 4.5-5.0 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 5.8 | 4.9-5.5 | 3.3 | 5.0-5.5 | 0.75-1.0 | 800 | 700 | |
| 3.2 | 6.3 | 4.9-5.5 | 3.3 | 5.5-6.0 | 0.75-1.0 | 800 | 700 | |
Key Advantages of Flying Head Blind Rivets
Flying Head Blind Rivets are designed for specialized fastening applications where controlled rivet formation and material compatibility are important.
Suitable for Thin and Soft Materials
Designed for selected applications involving thin sheets or softer materials.
Reduced Risk of Material Damage
The appropriate rivet design can help reduce the risk of material deformation or pull-through.
Consistent Joint Formation
Proper rivet selection and installation help achieve consistent joint formation.
One-Side Installation
Allows fastening where access to the rear side of the workpiece is limited.
Specialized Mandrel Design
The flying head design supports the rivet’s intended setting mechanism and material formation.
Flexible Application Options
Available for specialized fastening requirements, depending on rivet dimensions, materials, and joint design.
Flying Head Blind Rivets vs Large Flange Blind Rivets
| Feature | Flying Head Blind Rivets | Large Flange Blind Rivets |
|---|---|---|
| Clamping Behavior | Forms secondary “flying head” for improved backside support | Improved surface grip (larger head) |
| Performance on Thin Materials | Excellent – reduces deformation and increases support | Good – distributes load on surface |
| Pull-Through Resistance | High (enhanced backside bearing area) | High (front-side support) |
| Strength Level (Shear & Tensile) | Moderate | Standard |
Typical Applications for Flying Head Blind Rivets
Flying Head Blind Rivets are used in applications requiring specialized fastening or clearance, including:
For general thin sheet applications, Large Flange Open-End Blind Rivets or Pull-Thru Blind Rivets may be alternatives.
Customization, Quality Control & Supply Capability
RivetFast offers drawing-based customization for Flying Head Blind Rivets, including dimensions, materials, head styles, and packaging.
Customization Options
Dimensions, materials, finishes and packaging tailored to your specifications.
Quality Control
Dimensional checks, material verification and relevant product testing.
Manufacturing & Bulk Supply
In-house production and support for repeat and bulk orders.
Looking for standard or customized Flying Head Blind Rivets?
Send us your specifications for a quotation.
Installation Tools & Setting Process for Flying Head Blind Rivets
Flying Head Blind Rivets require compatible installation tools suited to their specific mandrel design and setting requirements.
Need help selecting the right rivet size or grip range?
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Quality Management
RivetFast manufactures blind rivets under an ISO 9001 certified quality management system, supporting controlled production processes and consistent quality management.
In-House Inspection & Testing
Dimensional checks and relevant product tests help verify specified requirements. Our testing capabilities include tensile, hardness, and salt spray testing, depending on the product and inspection requirements.
A Broad Range of Blind Rivets
From open-end and multi-grip to closed-end, structural, and specialty blind rivets, our range covers different fastening designs, materials, and application needs.
Factory Manufacturing & Custom Support
With in-house manufacturing, 200+ automated machines, and an annual production capacity of 2 billion+ pieces, RivetFast supports bulk orders, repeat supply, and drawing-based customization.
Request a Quote for Flying Head Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
No complete specifications? No problem. Send us what you have and we’ll help confirm the requirements.
FAQ – Flying Head Blind Rivets
Q1:What are Flying Head Blind Rivets used for?
Flying Head Blind Rivets are designed for specialized or clearance-sensitive applications where standard blind rivets may fail, including thin or soft materials.
Q2:Are Flying Head Blind Rivets suitable for blind-hole installations?
Yes. They are specifically engineered for blind-hole fastening, providing reliable clamping without backside access.
Q3:Can Flying Head Blind Rivets replace Large Flange Open-End Blind Rivets?
They serve different purposes. Flying Head Blind Rivets are for specialized clearance or mandrel-head applications, while Large Flange Open-End Blind Rivets provide increased front-side bearing surface.
Q4:What materials and finishes are available?
Aluminum, steel, and stainless steel combinations are available with finishes including zinc plating, black oxide, natural/plain, and custom coatings.
Q5:What tools are required for installation?
Manual, pneumatic, or battery-powered blind rivet tools compatible with flying head designs are recommended.
This product is part of RivetFast’s Blind Rivets product range and is manufactured to meet industrial fastening requirements.
